Bitcoin 5m Up/Down across two order books

This feature example starts from a question that requires all three OnchainDivers data surfaces: what did the prediction market see while the underlying BTC futures book moved during one five-minute resolution window?

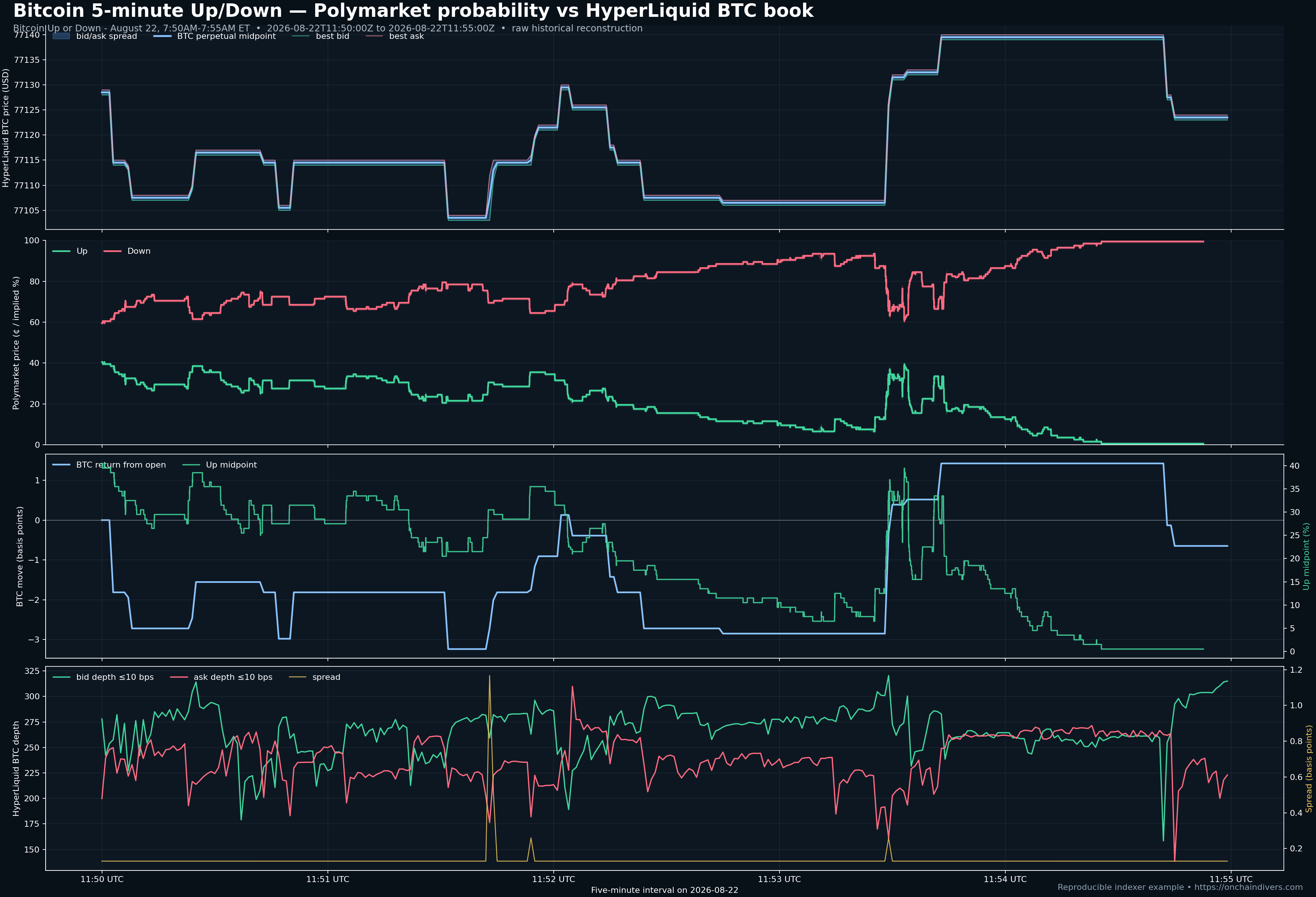

Reconstructed Bitcoin five-minute Polymarket and HyperLiquid books

The image above is not checked in and cannot go stale unnoticed. The Python checker regenerates it from raw data before every successful documentation build.

The same downloaded raw files also drive the simple 300 ms microprice research example, so the large HyperLiquid checkpoint is fetched only once per strict build.

What the script does

examples/cross_venue/bitcoin_5m_updown.py performs the complete workflow:

  1. It asks polymarket.raw_event_meta for the completed btc-updown-5m-<epoch> event near UTC now minus 24 hours, with a 15-minute archive-finalization buffer. The epoch suffix defines the exact interval; the script does not mistake metadata creation time for market time. Tiny archive-edge files still being finalized are skipped in favor of the nearest substantial dedicated capture, and a window away from the UTC hour boundary avoids downloading a redundant hourly shard.
  2. It asks polymarket.raw_market_meta for the Up and Down rows, requires their embedded event ID to match, and obtains both CLOB token IDs. No market or token ID is hard-coded.
  3. It downloads the dedicated <market-slug>.log.zst file, extracts every explicit best-bid/ask transition during the five minutes, and independently replays full snapshots and price-level changes for both outcomes at close.
  4. It binary-searches HyperLiquid checkpoint timestamps, downloads the newest MessagePack checkpoint before the interval and every required compressed hourly diff shard, then loads BTC perpetual action asset 0 at size precision 5.
  5. It applies new, update, and remove messages by order ID while maintaining aggregated bid and ask levels. Once per second it records best bid, best ask, midpoint, spread, live order count, and depth within ten basis points.
  6. It renders four synchronized panels: BTC bid/ask, Up/Down probability, normalized BTC return versus Up probability, and futures depth/spread.

The adjacent JSON summary records the selected interval, resolved token IDs, sample counts, final order count, raw byte count, and chart path for automated checks.

Run it reproducibly

All dependencies and execution happen inside the same checker image used by the site build:

docker build --target checker-base -t onchaindivers-docs:checker-base .
docker run --rm \
  --env-file .env \
  --volume "$PWD/docs/public/examples:/app/docs/public/examples" \
  onchaindivers-docs:checker-base \
  python3 -u examples/cross_venue/bitcoin_5m_updown.py

The strict build invokes the same run() function after it has scanned both configured archives. It requires two Polymarket outcomes, the full 300 one-second HyperLiquid samples, valid non-crossed books, and a substantial PNG. Any metadata drift, archive gap, raw-format change, truncated file, broken replay, or rendering failure prevents the static site from being built.
